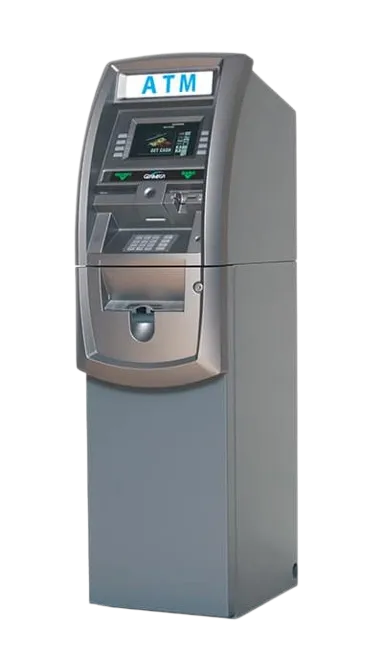

Upgrade the receipt printer to add 3-inch graphics for custom branding or coupons
The 8-inch high-resolution wide screen LCD can be upgraded to a 10.2-inch touch screen.
The machine supports cash dispensers from other equipment suppliers, making it even more flexible
Optional LED topper sign that can accept custom inserts
Highly visible LED sign that attracts customers
ADA complaint with voice guidance, lighted transaction guidance, and an accessible keypad layout
Display: 8-inch diagonal 32-bit color backlit TFT LCD panel with 800 x 480 resolution
Printer: 56mm (2-inch) with optional 80mm (3-inch)
Pin Entry Device: 16-key alphanumeric keypad, PCI/Interact Certified, and Triple DES (TDES) complaint EPP
Communication: 56kb internal model and TCP/IP Ethernet – SSL
CPU: Samsung 32-bit CPU with 64 MB RAM/Windows CE 5.0
Card Reader: DIP type with optional EMV
Security: UL291 business hours vault and dial or electronic lock
Cash Dispenser: 800 note fixed cassette (TCDU), 1,000 note removable cassette (SCDU), 1,700 note removable cassette (MCDU), and 2 x 1,700 note removable cassette (MCDU)
Power Requirements: 110/220 VAC, 50/60 Hz, 145 watts
Environmental Conditions: 45 – 95°F (5 – 35°C), 15 – 85% humidity
Height: 56.3 inches
Width: 15.8 inches
Depth: 22.3 inches
Weight 206 pounds

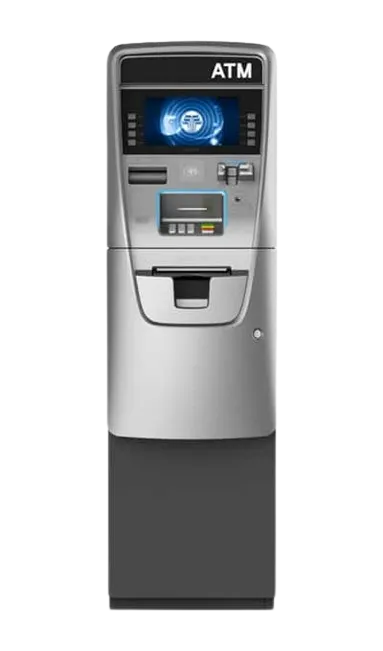

This ATM provides a highly intuitive operator menu program that enables first time and veteran users to easily operate and service the machine.
ATM users have the paper-saving option of no receipt or screen display of a QR-encoded digital receipt.
The system uses components compatible with Nautilus Hyosung’s other retail models, allowing customers to protect their investment in interchangeable spare parts.
Customers may earn additional revenue from transactions such as Dynamic Currency Conversion (DCC), donations, lottery and surcharge segmentation.
The system is positioned to support cardless cash withdrawals using an optional NFC (Near Field Communications) feature, an attractive option to users transitioning to cardless transactions.
10.1″ color LCD screen
LED-lit keypad
Lead-through indicator
Break-in protection
Digital receipt
Audio jack
Multilingual capabilities
EPP indicator
TLS protocol communication
Decimal surcharge
Donation transactions
System Platform: Windows CE6.0
Communication: TCP/IP and dial-up
Input Type: Option RKT, ADA compliant, 8 function keys, PCI compliant EPP
Security: UL 291 Business Hours Safe, electronic lock, Cencon lock, S&G lock
Card Reader: Dip type card reader and EMV card reader
Cash Dispensing: 1,000 note removable cassette, 1,000 note drawer, and 2,000 note removable cassette
Printers: Electronic journal printer and thermal line 3″ receipt printer
Language support: English, French, Japanese, Chinese, and Korean
Power Supply: AC 110-240V, 50-60 Hz
Operating environment: 32°F – 104°F (or 0°C – 40°C) and 20%-85% humidity
Height: 54.2″ (1,329 mm)
Width: 15.7″ (400 mm)
Depth: 23.4″ (593 mm)
Weight: 265lbs (120 kg)
